TYPE:

NAME:PVC Series Belling machine

Category: Auxiliary Equipment

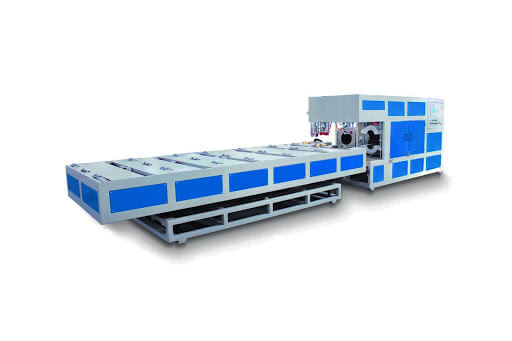

PVC Series Belling Machine



Product introduction:

SGK-630 Full-Auto Pipe Belling-machine Expanding withdrawing device and program interface concerned is used with the extruding machine. It is also could be used for separate operations. While expanding pipes, the machine adopts translation. The action is steady and correct. It does not damage pipe materials. The machine adopts a double-infrared heating oven type. Each oven is equipped with a heating core. The shaping method adopts expanding-end shaping. The size of the pipe mouth is correct. On its panel, there is a transfer switch of expanding solvent-type pipe sockets, solvent, rubber-ring expansion, and rubber-ring lip-type sockets. The choice of expanding pipe types is very convenient. The technological adaptability is strong. Its main electric control elements are all exported. The system characteristics are steady and reliable.

Get a Price Quote

Please Subscribe and Like our channel
www.benkextruder.com
Email: [email protected]
WeChat/WhatsApp: +8615950962426
Telegram: @benk_machinery_co_ltd
Subscribe to us:
https://www.youtube.com/channel/UCm7P_hL9NLr2rDy5SM8gJ_A
https://vk.com/id422848847
https://www.facebook.com/eric.ding.58760/
https://twitter.com/BenkLtd
https://www.instagram.com/benkmcl/
https://www.pinterest.com/benkmcl
https://www.linkedin.com/in/eric-ding-b9722922/

The main technical parameters

Flaring tube diameter Ф50-160 Ф50-250 Ф160-400 Ф500-500 Ф400-630
Flaring tube thickness(mm) 2.9-9.5 2.9-15 4-23.7 5-29.7 9.8-24
Cooling way Air cooling or water cooling Air cooling or water cooling water cooling water cooling water cooling
Expanding production 2-40/hours 2-40/hours 2-30/hours 2-25/hours 2-15/hours
Flaring production Straight mouth, R buttons or rectangle
Mode of operation Automatically or manually
Discharge tube way Automatic discharge tube
Heating control Heat can be adjusted





Model Pipe Diameter Heating Method  Belling Method Heating power Dimension
SGK110 50-110 mm Electric heating Mould physical expansion 10.5kw 7500x1400x1750mm
SGK160 50-160 mm Electric heating Mould physical expansion 10.5kw 7500x1400x1750mm
SGK200 50-200 mm Electric heating Mould physical expansion 10.5kw 7855x1350x1900mm
SGK250 110-250 mm Electric heating Mould physical expansion 10.5kw 7830x1620x1700mm
SGK315 160-315 mm Electric heating Mould physical expansion 14kw 8050x1750x1900mm
SGK450 200-450 mm Electric heating Mould physical expansion 18kw 8290x2090x2080mm
SGK500 315-500 mm Electric heating Mould physical expansion 18kw 8500x3050x2100mm
SGK630 400-630 mm Electric heating Mould physical expansion 22.5kw 8615x3125x2500mm
