How to Efficiently Mold Wood-Plastic Composites?

Wood-plastic composites (WPC) are a new type of environmentally friendly material made from wood fibers (such as wood powder, bamboo powder, and straw) and thermoplastic plastics (such as PE, PP, and PVC) through physical blending and high-temperature extrusion molding. Because it combines the texture of wood with the weather resistance and maintenance-free properties of plastic, it is widely used in outdoor flooring, wall panels, railings, and landscape features. However, due to the easy moisture absorption and poor thermal stability of wood powder, and its poor compatibility with plastics, WPC is prone to problems such as uneven foaming, rough surface, and insufficient strength during the molding process. Therefore, achieving efficient, stable, and high-quality molding of wood-plastic composites has become a core issue in the industry’s technological upgrading.

I. Raw Material Pre-treatment: The Prerequisite for Efficient Molding

The molding quality of WPC primarily depends on the state of the raw materials. Excessive moisture content in the wood powder will lead to water vapor volatilization during extrusion, forming bubbles or even cracking; while uneven dispersion of plastic and wood powder will affect mechanical properties.

Drying treatment: Wood powder needs to be dried at 80–105℃ to a moisture content of ≤1%, and continuous airflow drying or vacuum drying equipment is recommended;
Surface modification: The wood powder is coated with coupling agents (such as silane and titanate) to improve its interfacial bonding force with the plastic matrix;
Pre-mixing and granulation: The dried wood powder, plastic particles, and additives (lubricants, antioxidants, foaming agents, etc.) are uniformly mixed in a high-speed mixer. Some companies use a “two-stage granulation” process, first preparing high-filler masterbatches, and then blending them with the base material, significantly improving dispersion and processing stability.

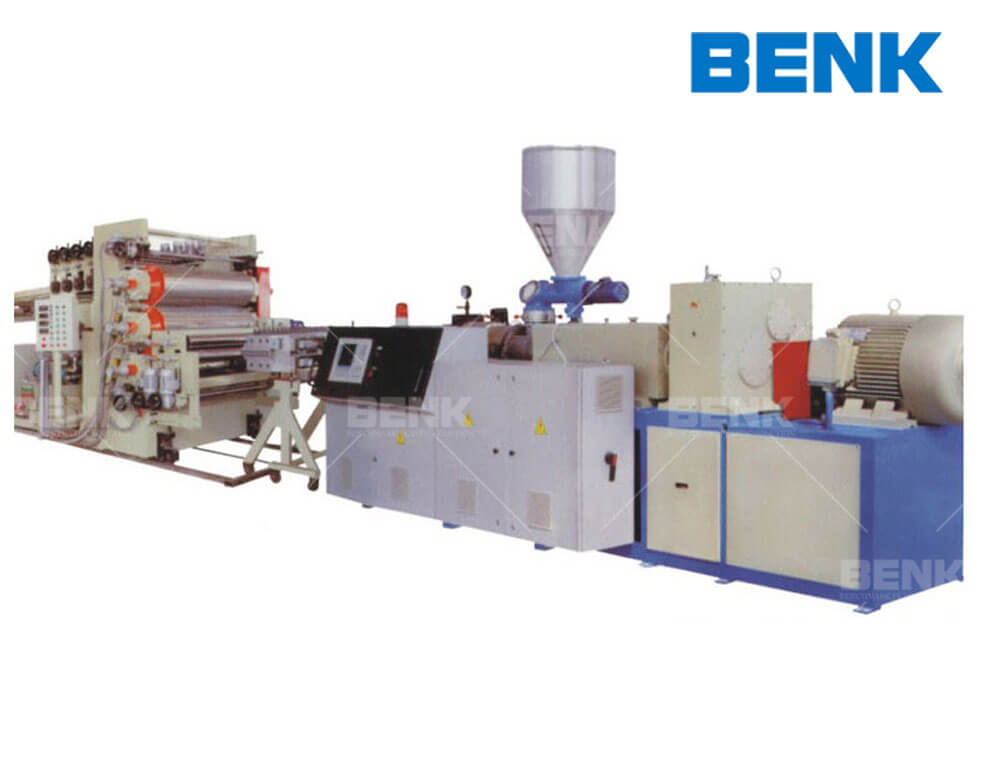

II. WPC Board Extrusion Production Line: The Core Carrier for Efficient Molding

An advanced WPC board production line usually consists of a feeding system, a twin-screw extruder, a mold, a shaping and cooling device, a traction and cutting unit, and an intelligent control system. The synergistic optimization of each link is key to achieving efficient molding.

1. Twin-Screw Extrusion Main Machine: The Core of Plasticization and Devolatilization
Due to its high filler content (wood flour content often reaches 40%-70%) and strong thermal sensitivity, WPC must use a parallel twin-screw extruder (a few use conical twin-screw extruders). Its advantages are:

Strong shearing and self-cleaning capabilities, ensuring uniform dispersion of high-proportion wood flour;
Multi-stage temperature control and vacuum degassing ports effectively remove moisture and volatile substances, preventing internal pores in the boards;
Adjustable screw configuration to adapt to different formulations (e.g., foamed WPC requires a low-shear section, while solid boards require a high-compaction section).
By 2025, mainstream equipment will generally adopt servo drives, electromagnetic heating, and melt pressure closed-loop control, reducing energy consumption by more than 15% and achieving more uniform plasticization.

2. Molding Die: Determining Product Appearance and Structure
WPC board molds are mostly coat-hanger or T-shaped dies, requiring smooth flow channels without dead ends to avoid wood flour accumulation and charring. For foamed WPC, microporous foaming control technology is also required, adjusting the die lip opening and back pressure to achieve fine and uniform cell structure (cell diameter <0.3mm). High-end production lines have begun to use in-mold online width adjustment technology, allowing adjustment of board width without stopping the machine, improving flexible production capabilities.

3. Shaping and Cooling System: Ensuring Dimensional Accuracy
The newly extruded WPC boards have high temperature and low strength, and need to immediately enter a multi-stage vacuum shaping table:

The first stage uses strong vacuum adsorption to quickly shape the surface contour;
The middle and later stages use zoned spray cooling with controlled water temperature gradients (e.g., 30℃→20℃→15℃) to reduce internal stress and warping;
Equipped with automatic leveling and correction devices to ensure board straightness ≤1mm/m.

4. Traction and Cutting: The Key to Stable Output
Using upper and lower track servo traction machines, the clamping force is adjustable to prevent high-filler boards from being crushed. A synchronized laser length measurement + flying saw cutting system is configured to achieve a length accuracy of ±1mm and supports automatic stacking.

III. Intelligence and Green Manufacturing: A New Dimension of High-Efficiency Molding

Modern WPC board production lines are rapidly evolving towards “smart factories”:

A central control system integrates PLC, HMI, and MES, enabling formula management, process traceability, and energy consumption analysis;
AI vision inspection systems monitor board surface defects (such as black spots, cracks, and color differences) in real time, automatically rejecting defective products;
Waste heat recovery and dust collection systems significantly reduce carbon emissions, meeting green manufacturing certification requirements.
In addition, some leading companies have explored online foaming control and co-extrusion surface technologies (such as ASA/PVC coating) to further enhance the weather resistance and decorative properties of WPC boards, expanding their application in high-end construction.

The efficient molding of wood-plastic composites is not simply the sum of individual equipment performance, but rather a comprehensive optimization of the entire chain, from raw material pretreatment, extrusion and plasticization, and precision shaping to intelligent control. Only by utilizing advanced WPC board extrusion production lines, combined with scientific formula design and refined management, can the production goals of “high efficiency, high quality, low energy consumption, and minimal waste” be truly achieved. In the future, with the integration of new technologies such as bio-based plastics, nano-reinforcement, and digital twins, WPC molding processes will continue to advance to a higher level of green and intelligent manufacturing.
