HDPE pipes are mainly used in municipal water supply systems, building indoor water and outdoor buried water supply systems and residential communities. We can make HDPE pipe with OD from 16-2000 mm with different models.

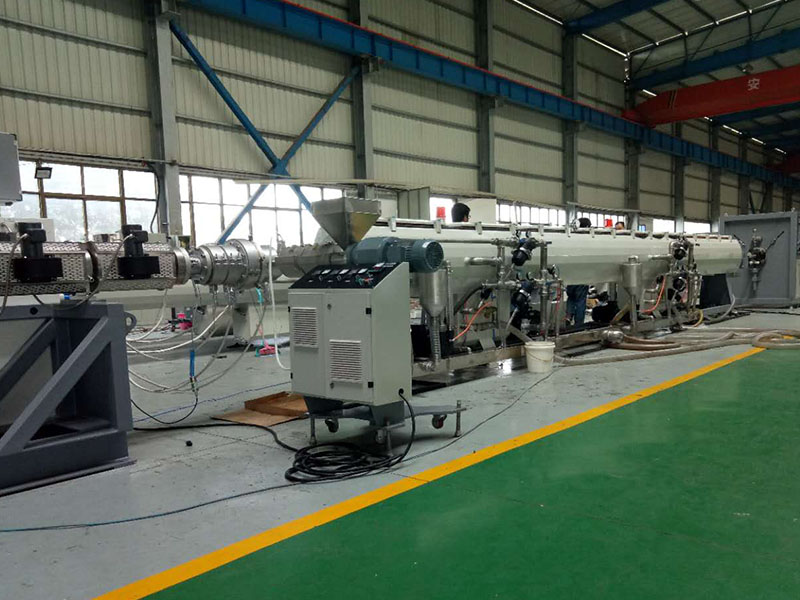

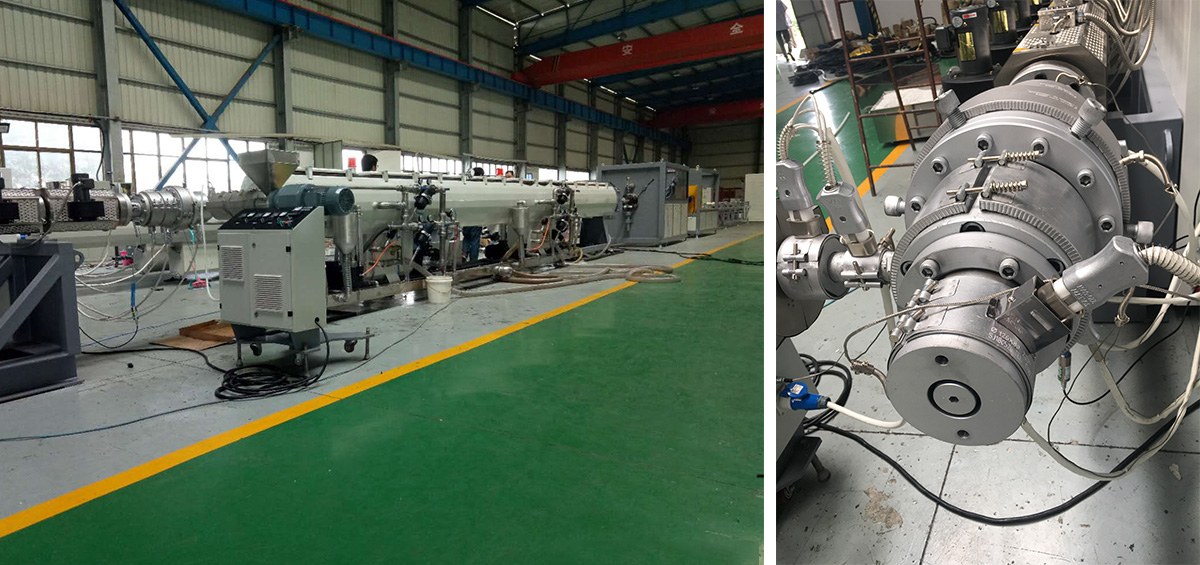

PE granules→ Vacuum feeding machine → Hopper dryer → Single screw extruder → Color code extruder → Mould and calibrator → Vacuum forming machine → Cooling tank → Haul off machine → Cutting machine → Discharging rack/winder/coil machine
1. It’s suitable for PE, PP, and other polyolefin pipes high-speed extrusion.
2. It’s greatly reputed by the customers due to “European performance”.
3. The whole equipment can be controlled by the PLC smart modular. Furthermore, automatic control, real-time data record, and closed-loop control can be realized.
4. The advantages are high output, high adaptability for different raw materials, high stability good-quality extrusion, and so on.
5. Adopts reasonable design, absorbing safe producing technology, acquiring CE & ISO certificate.
6.using world-famous brand electric parts, such as SIEMENS, SCHNEIDER, ABB, CRYDOM, etc.
HIGH-SPEED PE PIPE EXTRUSION LINE
| Model | Pipe spec (mm) | Extruder | Max output (kg/h) | Motor power (kW) |
| KPM63-PE | Φ20-Φ63 | SJ65/38 | 250-300 | 75 |
| KPM110-PE | Φ63-Φ110 | SJ65/38 | 250-350 | 90 |
| KPM250-PE | Φ75-Φ250 | SJ75/38 | 500-550 | 185 |
| KPM450-PE | Φ160-Φ450 | SJ90/38 | 700-750 | 250 |
| KPM630-PE | Φ315-Φ630 | SJ120/38 | 900-1100 | 280 |
| KPM800-PE | Φ400-Φ800 | SJ150/35 | 1000-1200 | 315 |
| KPM1000-PE | Φ630-Φ1000 | SJ150/38 | 1000-1200 | 315 |
| KPM1200-PE | Φ800-Φ1200 | SJ120/33 & SJ90/38 | 1500-1700 | 280/220 |
NORMAL SPEED PE PIPE PRODUCTION MACHINE
| Model | Pipe range (mm) |
Capacity (kg/h) |
Hauling speed (max. m/min) |
Total power (kW) |
Line length (m) |
| PE63B | φ16-φ63 | 100-150 | 10 | 85 | 35 |
| PE125B | φ40-φ125 | 200-250 | 6 | 155 | 38 |
| PE250B | φ90-φ250 | 300-350 | 3.5 | 198 | 42 |
| PE315B | φ100-φ315 | 300-350 | 3 | 260 | 44 |
| PE450B | φ160-φ450 | 400-500 | 1.2 | 310 | 56 |
| PE500B | φ200-φ500 | 400-500 | 1.1 | 330 | 56 |
| PE630B | φ315-φ630 | 700-800 | 0.9 | 480 | 64 |
| PE800B | φ500-φ800 | 900-1000 | 0.7 | 540 | 72 |
| PE1200B | φ800-φ1200 | 1000-1200 | 0.4 | 660 | 80 |
1. Benk will supply different data of HDPE Extrusion Line as per your demands and useful for HDPE Pipe, such as different application of pipe, different size, the pressure of the pipe.
2. Benk’s screw and barrel are designed with a special layout and produced by Bi-metallic in order to make sure good plasticizing when the barrel is high-speed rotation, then can achieve higher output with lower power consumption.
3. Benk uses an integrated gravity gauging system in the HDPE Extrusion Line which can test and control the quality of final pipes, then it can save the production cost for you, and reduce damaged pipes.
4. Benk uses stainless steel board SS304 with 3 mm to 5 mm thickness to make a vacuum tank and cooling tank. And all tanks are designed with a reasonable pipe layout and low power consumption.
5. Benk extrusion pipe die adopts pumping system, increase the cooling effect, reduce the length of the cooling tank, increase production effect and reduce cost for you.
HDPE Plastic Pipe Extrusion Line Main technical parameters:
| SPECIFICATIONS FOR HIGH SPEED PE PIPE EXTRUSION LINE | ||||
| Model | Pipe spec(mm) | extruder | Max output(kg/h) | motor power(kw) |
| KPM63-PE | Φ20-Φ63 | SJ65/38 | 250-300 | 75 |
| KPM110-PE | Φ63-Φ110 | SJ65/38 | 250-350 | 90 |
| KPM250-PE | Φ75-Φ250 | SJ75/38 | 500-550 | 185 |
| KPM450-PE | Φ160-Φ450 | SJ90/38 | 700-750 | 250 |
| KPM630-PE | Φ315-Φ630 | SJ120/38 | 900-1100 | 280 |
| KPM800-PE | Φ400-Φ800 | SJ150/35 | 1000-1200 | 315 |
| KPM1000-PE | Φ630-Φ1000 | SJ150/38 | 1000-1200 | 315 |
| KPM1200-PE | Φ800-Φ1200 | SJ120/33 & SJ90/38 | 1500-1700 | 280/220 |
Technical Parameter for normal speed PE PIPE PRODUCTION MACHINE
| Model | Pipe range (mm) |
Capacity (kg/h) |
Hauling speed (max.m/min) |
Total power (kw) |
Line length (m) |
| PE63B | φ16-φ63 | 100-150 | 10 | 85 | 35 |
| PE125B | φ40-φ125 | 200-250 | 6 | 155 | 38 |
| PE250B | φ90-φ250 | 300-350 | 3.5 | 198 | 42 |
| PE315B | φ100-φ315 | 300-350 | 3 | 260 | 44 |
| PE450B | φ160-φ450 | 400-500 | 1.2 | 310 | 56 |
| PE500B | φ200-φ500 | 400-500 | 1.1 | 330 | 56 |
| PE630B | φ315-φ630 | 700-800 | 0.9 | 480 | 64 |
| PE800B | φ500-φ800 | 900-1000 | 0.7 | 540 | 72 |
| PE1200B | φ800-φ1200 | 1000-1200 | 0.4 | 660 | 80 |
